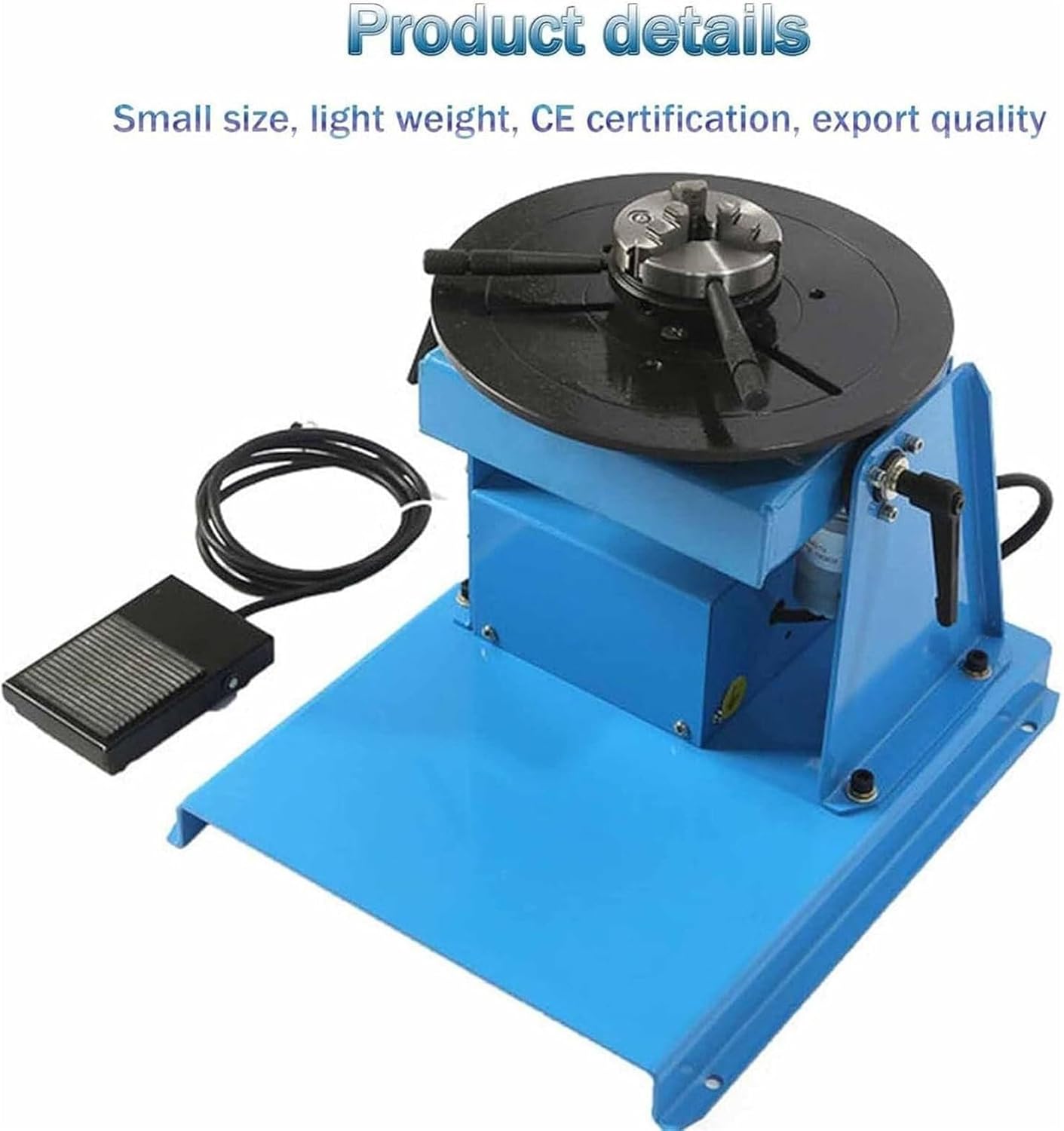

Welding rotary table welding machine positioner 0-90o, rotary welding positioner, 180mm welding turntable for cutting, grinding, assembly

Input voltage: 110V/220VHorizontal load-bearing capacity: 10KGVertical load-bearing capacity: 5KGWorkbench tilt angle: 0-90°Workbench diameter: 180MMWorkbench height: 220MMWorkbench speed: 2-16 rpmRated welding current: 80ADrive motor: DC24V 20WWorkbench flip: manualRotation motor: 15WDimensions: 370 * 270 * 215mmWeight: 10kg

• [Widely used] This rotary welding positioner is suitable for seam welding of flanges and steel pipes below 10KG; used for ring welding, cutting, grinding, assembly, etc. Supports CO2 welding, MIG, MAG, TIG welding, etc.
• [Smooth rotation] This rotary welding positioner is driven by a 20W high-quality DC motor, and rotates smoothly; speed: 2-16 rpm, knob stepless speed regulation, smooth operation of the workbench, stepless adjustment of the welding speed, large adjustment range, and high adjustment accuracy.
• [Reversible workbench] The workbench of this welding positioner has a reversing angle of 0-90 degrees, and can be fixed at any angle with a tilt locking wrench; manual workbench reversal, 18cm workbench, compatible with KC-65 or KC-80 chucks.
• [High precision] The workbench rotation is controlled by a foot switch, and the rotation control is convenient. The fixture and the workbench adopt a simple mechanical connection method with high positioning accuracy; the anti-electromagnetic design effectively reduces the interference of high frequency on TIG welding.
• 【Stepless Speed ​​Regulation】The welding machine positioning turntable provides 2-16 rpm stepless speed regulation, and the speed can be adjusted using the speed knob. The convenient foot switch can also easily control the 360-degree rotation of the workbench.
