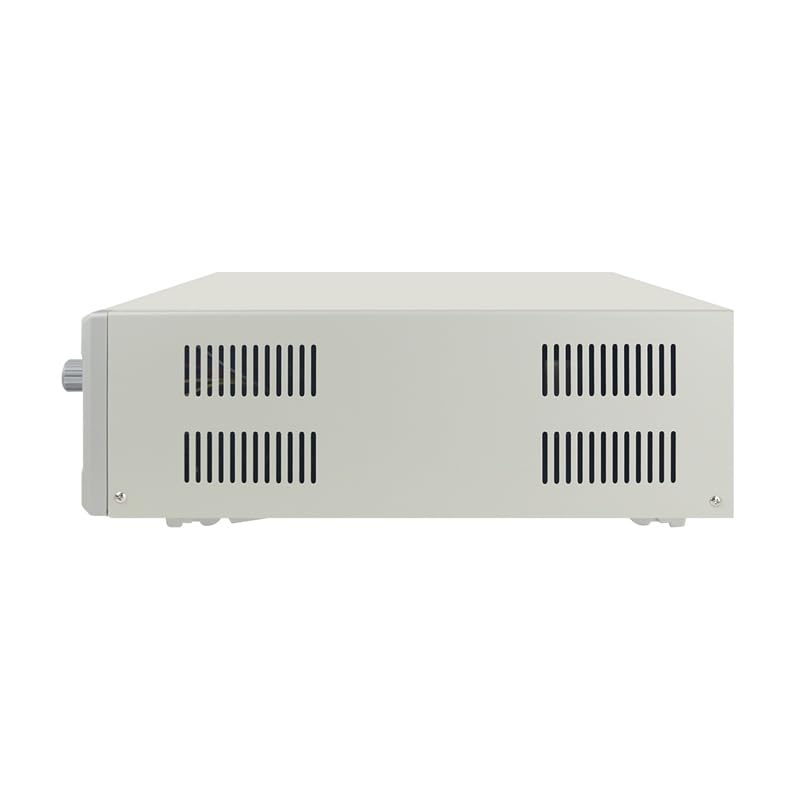

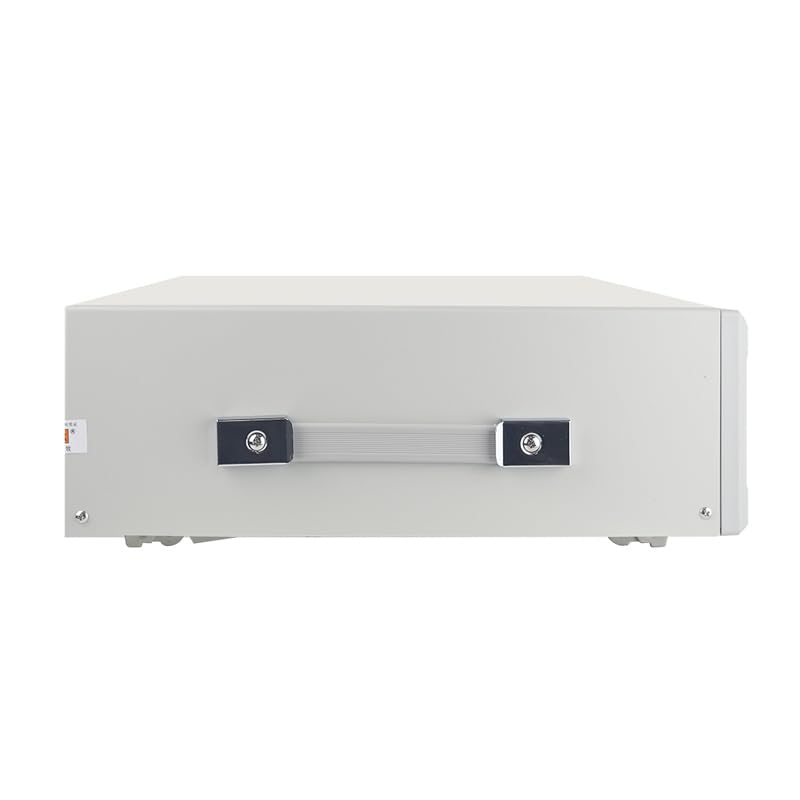

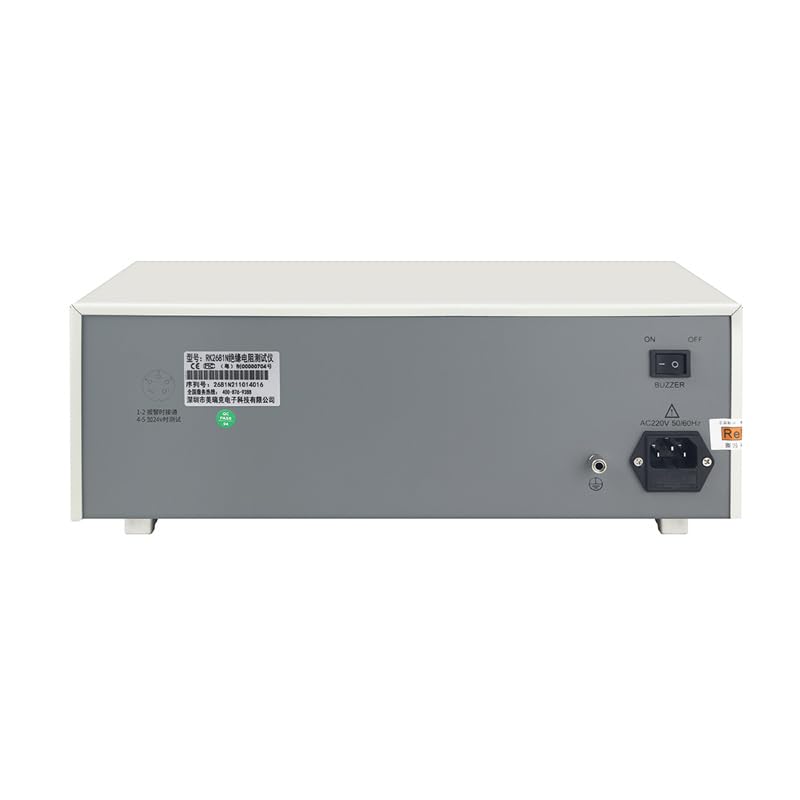

RK2681N Insulation Resistance Tester Resistance Range 100K Ohm-5T Ohm Voltage 500V Pointer Type with Standard PLC Interface

The output DC high voltage load capacity of the instrument is strong, the test accuracy is high, the operation is simple and under the careful planning of the designer, the instrument integration degree is improved, the test speed is accelerated, the stability is better, the structure is more reasonable, the appearance is more beautiful and generous

• Test resistance：100KΩ~5TΩ；Output voltage：10/25/50/100/250/500V;Voltage accuracy:±2%;Control mode:Analog circuit;Measuring speed resistive components :<0.5 seconds, capacitive components :0.5~10 seconds
• Working environment:0℃~40℃,≤85%RH;Power requirements:220V±10%,50Hz/60Hz±5%
• Easy to operate and reliable,With automatic voltage regulation function
• It has the function of bad discrimination,fast test speed, fast stability, safe and durable
• Suitable for all kinds of household appliances, cable, air conditioning, transformers, instruments, instruments and other complete machines and strong electric system insulation resistance testing, but also scientific research laboratories, technical supervision departments indispensable insulation resistance testing equipment.
