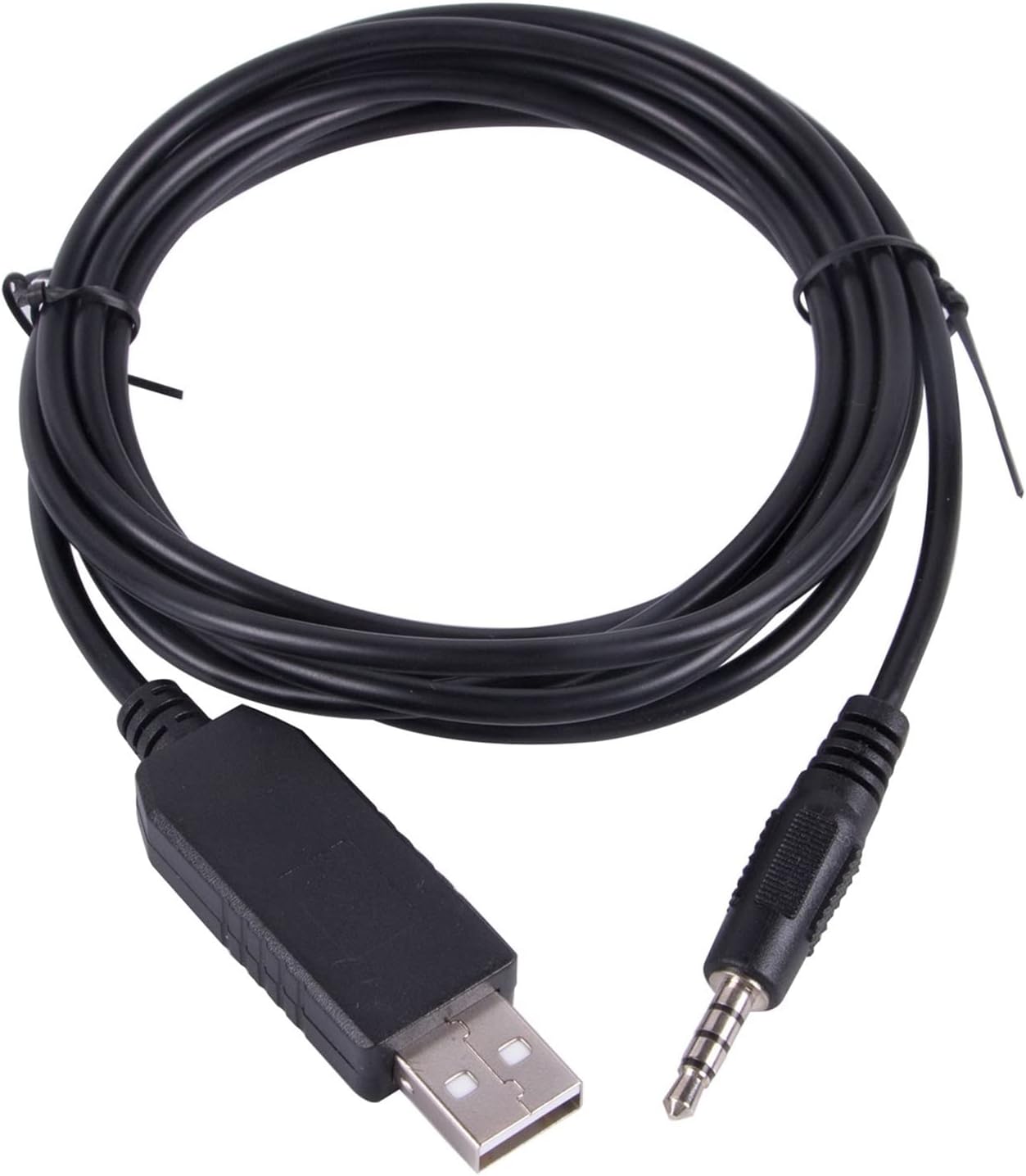

PL2303TA USB to RS232 Serial Adapter Converter Data Transmission Cable Compatible Compatible with USB-RS232-3.5MM AJ, 6FT, Standard
Product details
| Management number | 215154788 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 215154788 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
PL2303TA USB to RS232 Serial Adapter Converter Data Transmission Cable Compatible Compatible With USB-RS232-3.5MM AJUSB RS232 to 3.5mm jack serial cable Compatible With intel galileo board console cable3.5mm 4P audio jack malePL2303TA + ZT232 chipPC COM RS232 standard signals, not TTLStandard Pinout: Tip 1-RX, Ring 2 -TX, Ring 3-VCC, Sleeve-GNDTX is match with RX of device, RX is match with TX of deviceImport Notice: RX is match with your TX of device. TX is match with your RX of device.Cable: 4C*28AWG,dark PVC jacket, 6FT cableSupport Win XP/9X, Win 7, Linux, CE, etc (Not Support Android)About PL2303TAPL2303TA USB to Serial Bridge ControllerSerial Bus (USB) capable host. PL2303TA highly compatible drivers could simulate the traditional COM port on most operatingsystems allowing the existing applications based on COM port to easily migrate and be made USB ready without having torewrite the COM port software application.By taking advantage of USB bulk transfer mode, large data buffers, and automatic flow control, PL2303TA is capable ofachieving higher throughput compared to traditional ports.When real RS232signaling is not required, baud rate higher than 115200 bps could be used Compatible With even higher performance. The flexible baudrate generator of PL2303TA could be programmed to generate any rate between 75 bps and 6M bps.PL2303TA is exclusively designed Compatible With mobile and embedded solutions in mind, providing a small footprint that could easily in to any connectors and handheld devices. With very small power consumption in either operating or suspend mode,
- 3.5mm 4P audio jack male
- PL2303TA + ZT232 chip
- PC COM RS232 standard signals, not TTL
- Standard Pinout: Tip 1-RX, Ring 2 -TX, Ring 3-VCC, Sleeve-GND
- TX is match with RX of device, RX is match with TX of device
| Brand | Skcvmn |
|---|---|
| Color | Standard |
| Finish | Pvc |
| Unit Count | 1.0 Count |
| Item Weight | 536 Grams |
| Manufacturer | CHELIZIqipei |
| Model Number | Skcvmn |
| Input Voltage | 3 Volts |
| Connector Type | Auxiliary |
| Current Rating | 3.5 Amps |
| Number of Items | 1 |
| Number of Ports | 1 |
| Power Plug Type | No Plug |
| Package Quantity | 1 |
