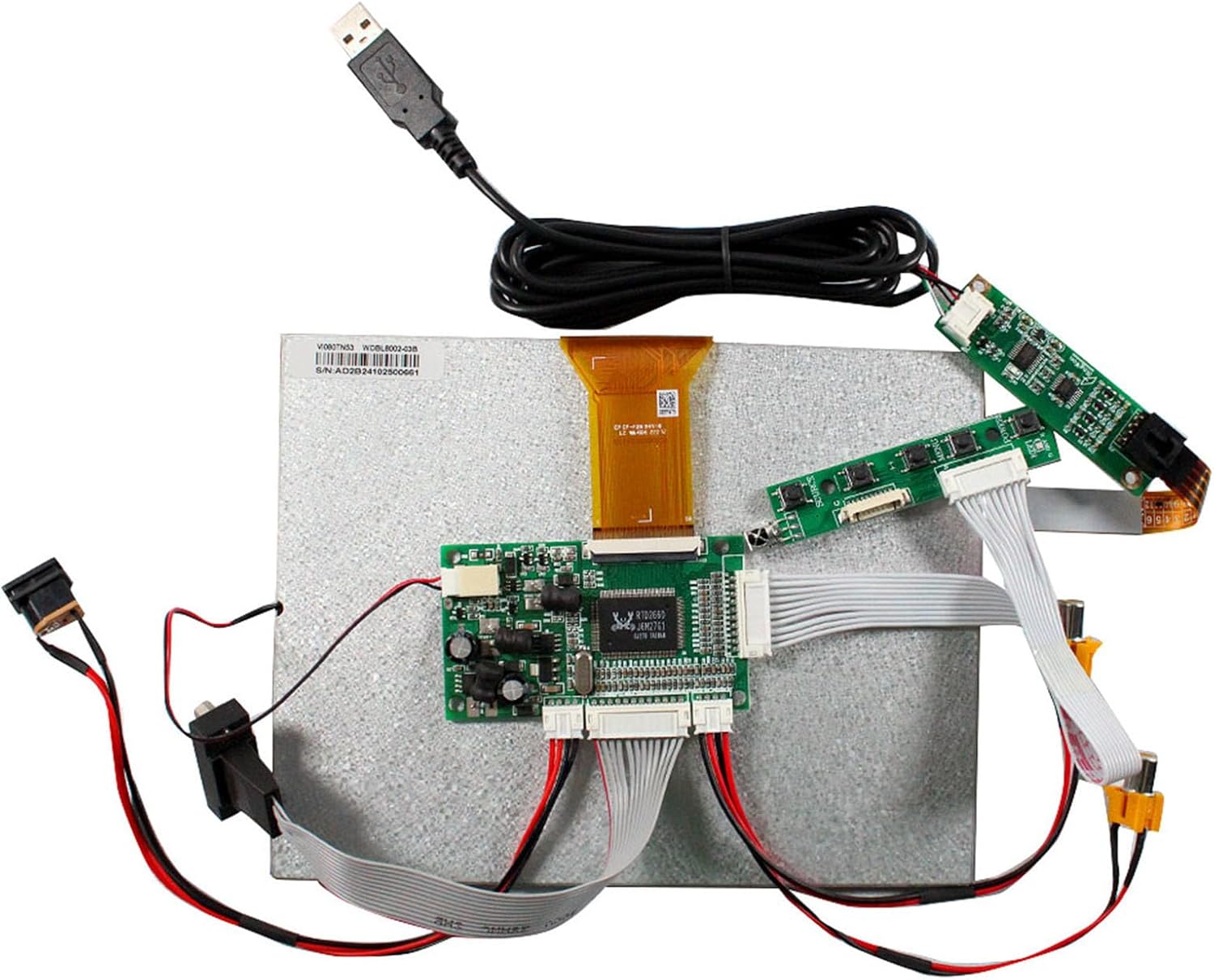

8" EJ080NA-05A 800X600 TTL LCD Screen with 4-Wire Resistive Touch Panel and VGA 2AV Controller Board 50pins

LCD Controller Board: Input Power Adapter:12Vdc 2A.Come In Standby Model When Not Input SignalStandby Model <1WVideo Input: VGA AV1 AV2Reversing: Support Automatically Switch To AV2 When Connector ACC to 12VOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size:77mm x 45mm x 12mm8" EJ080NA-05A 800X600 LCD Screen:Display Mode TN, Normally White, Transmissive Resolution 800(RGB)×600Outline Size 183 × 141×5.9 (H×V×D)mmDisplay Area 162 × 121.5 (H×V) mmBrightness 250 cd/m² (Typ.)Contrast Ratio 500:1 (Typ.) (TM) Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]Interface Parallel RGB (1 ch, 6/8-bit) , 50 pins , FPCBacklight WLEDInput Voltage 3.3V (Typ.)Packing list :1× VGA AV LCD Controller Board VS-TY50-V11× 8inch EJ080NA-05A 800X600 LCD With 4-Wire Resistive Touch Panel1× USB Controller Card1× USB Touch Cable1x DC Converter cable1x AV Cconverter cable1× Keyboard With

• 【Screen Advantage】8" EJ080NA-05A 800X600 4:3 aspect ratio 250nit TFT LCD Screen,Outline Size 183 × 141×5.9 (H×V×D)mm,Display Area 162 × 121.5 (H×V)mm,Contrast Ratio 500:1,Signal Interface Parallel RGB (1 ch, 6/8-bit) , 50 pins , FPC,Backlight WLED,Input Voltage 3.3V.
• 【LCD Driver Board】Video Input: VGA AV1 AV2,Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V,Pls use it in insulated environment.
• 【Input Power】12V DC 2A ,port size :5.5x2.1mm.Pls prepare the power adapter by yourself.
• 【Plug and play】Connecting cables and ports according to link picture details ,Power on and enter signal cable ,the screen can work well after powering.
• 【Packing lists】1× VGA+2AV LCD Controller Board VS-TY50-V1,1× 8inch EJ080NA-05A 800X600 LCD With 4-Wire Resistive Touch Panel,1× Power Supply Converter Cable,1× VGA Converter Cable,1× AV Converter Cable,1× USB Controller Card,1× USB Touch Cable,1× Extend Touch Cable,1× Keyboard With Cable
